Sinotruk Howo 5 ton small truck mounted crane Description:
- Sinotruk Howo 5 ton small truck mounted crane also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
- 4×2 HOWO chassis ensures perfect performance in driving
- Sinotruk technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
|Product Name||Sinotruk Howo 5 ton small truck mounted crane for sale Senegal|
|Driving Type||4×2,left hand drive|
|Curb weight (kg)||Approx.5800|
|Engine model||YC4E160-33 (160HP)|
|Engine type||Turbocharged ,High pressure common rail|
|No. of cylinders||Straight-4 cylinders|
|Max. Output (kw)||118kw|
|Emission standard||Euro 2(china national 3)|
|Transmission||WLY6T51,6 forwards,1 reverse gear, manual operation|
|Steering||With power steering|
|Brake system||Air break|
|Cabin||One and half cabin or single row cabin|
|Standard configuration||A/C optional|
|Tire specification||8.25R20 6 tires+1 spare tire|
|Crane model||5tons crane|
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:

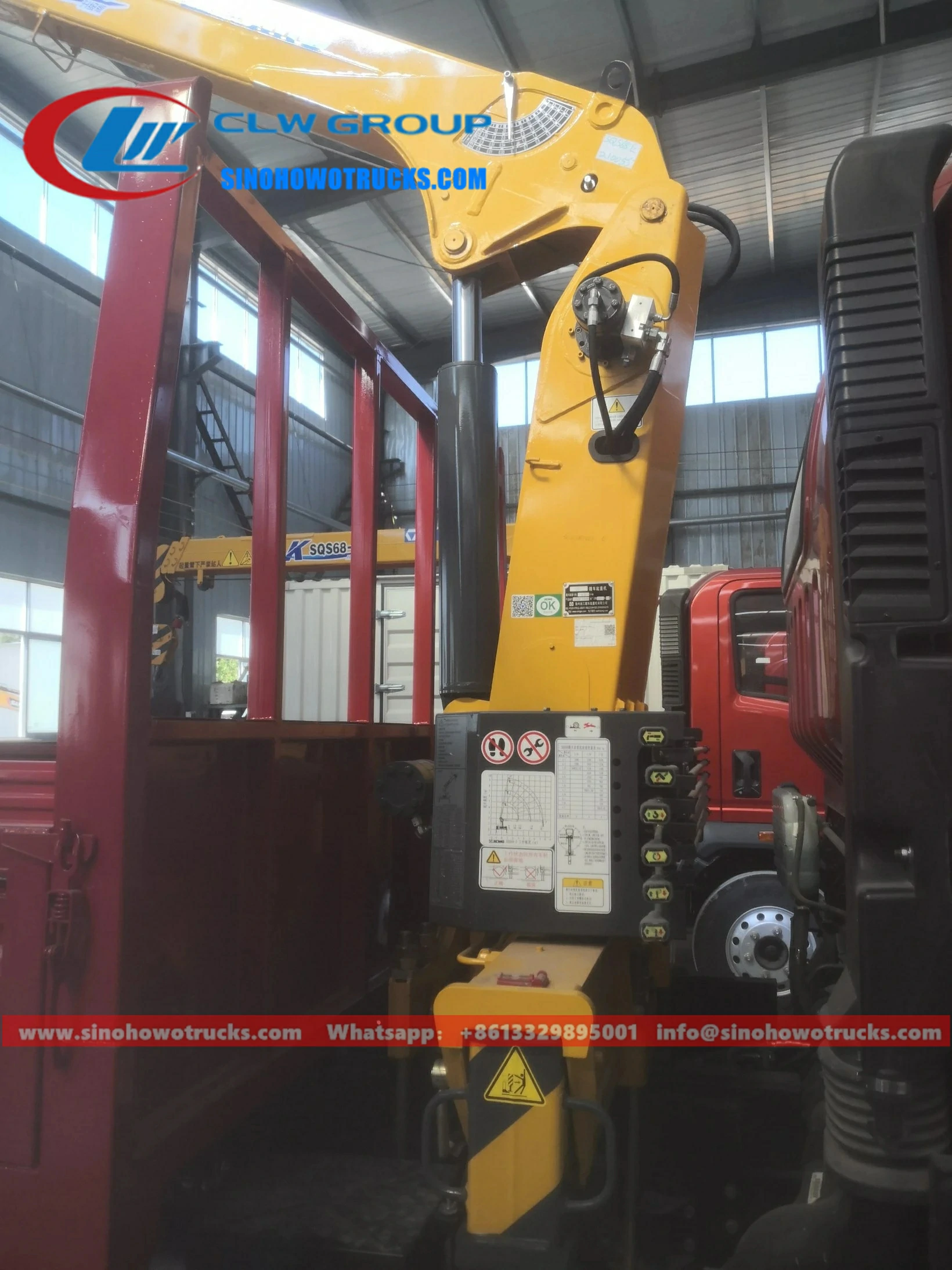

Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
