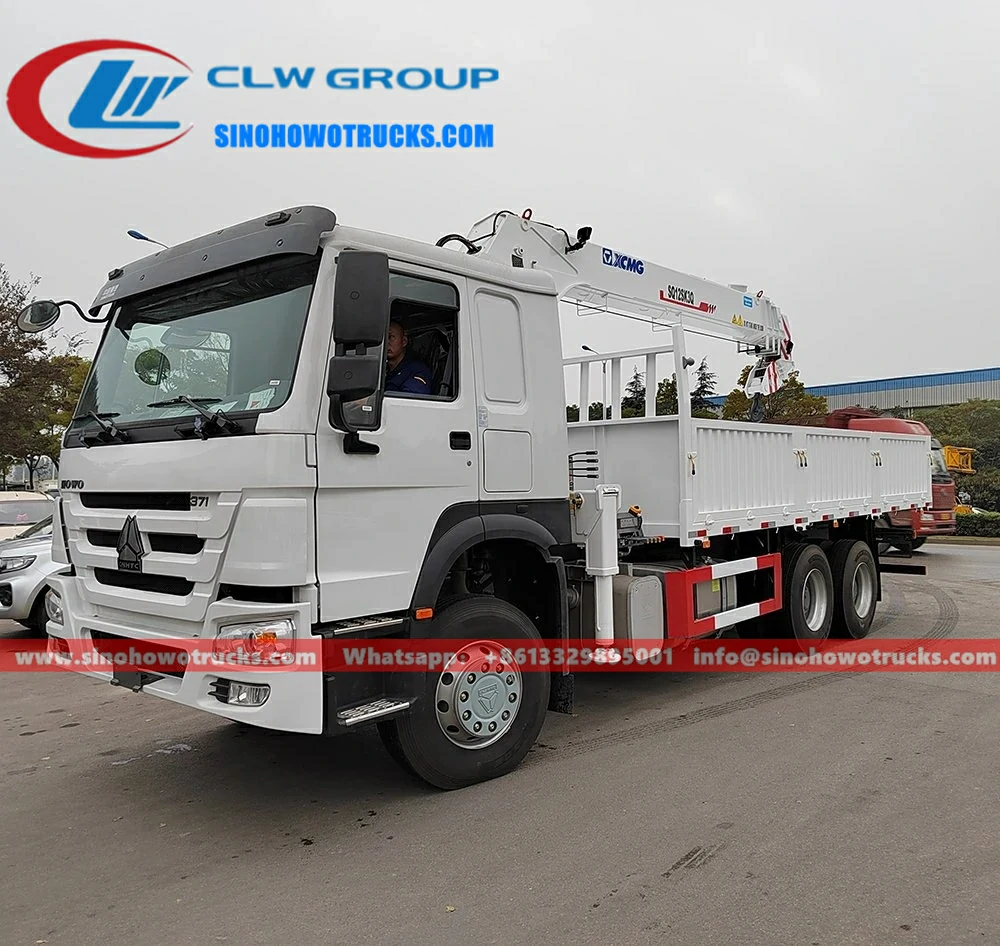

Sinotruk Howo 12t truck mounted hydraulic crane Description:
- Sinotruk Howo 12t truck mounted hydraulic crane also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
- 6X4 HOWO chassis ensures perfect performance in driving
- Sinotruk technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
|Product Name||Sinotruk Howo 12t truck mounted hydraulic crane Myanmar|
|Cabin||6×4, 2 seats, 1 sleeper, with A/C, LHD|
|Gross Vehicle Weight||22000kg|
|Emission standard||Euro 2|
|Gearbox||10 forwards and 2 reverses|
|Tire||12R22.5 tubeless tyre, 10pcs with 1 spare|
|Max lifting capacity||12000kg|
|Max lifting moment||18 t*m|
|Max lifting height||14.7m|
|Min. ground clearance||285mm|
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
- 18 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
