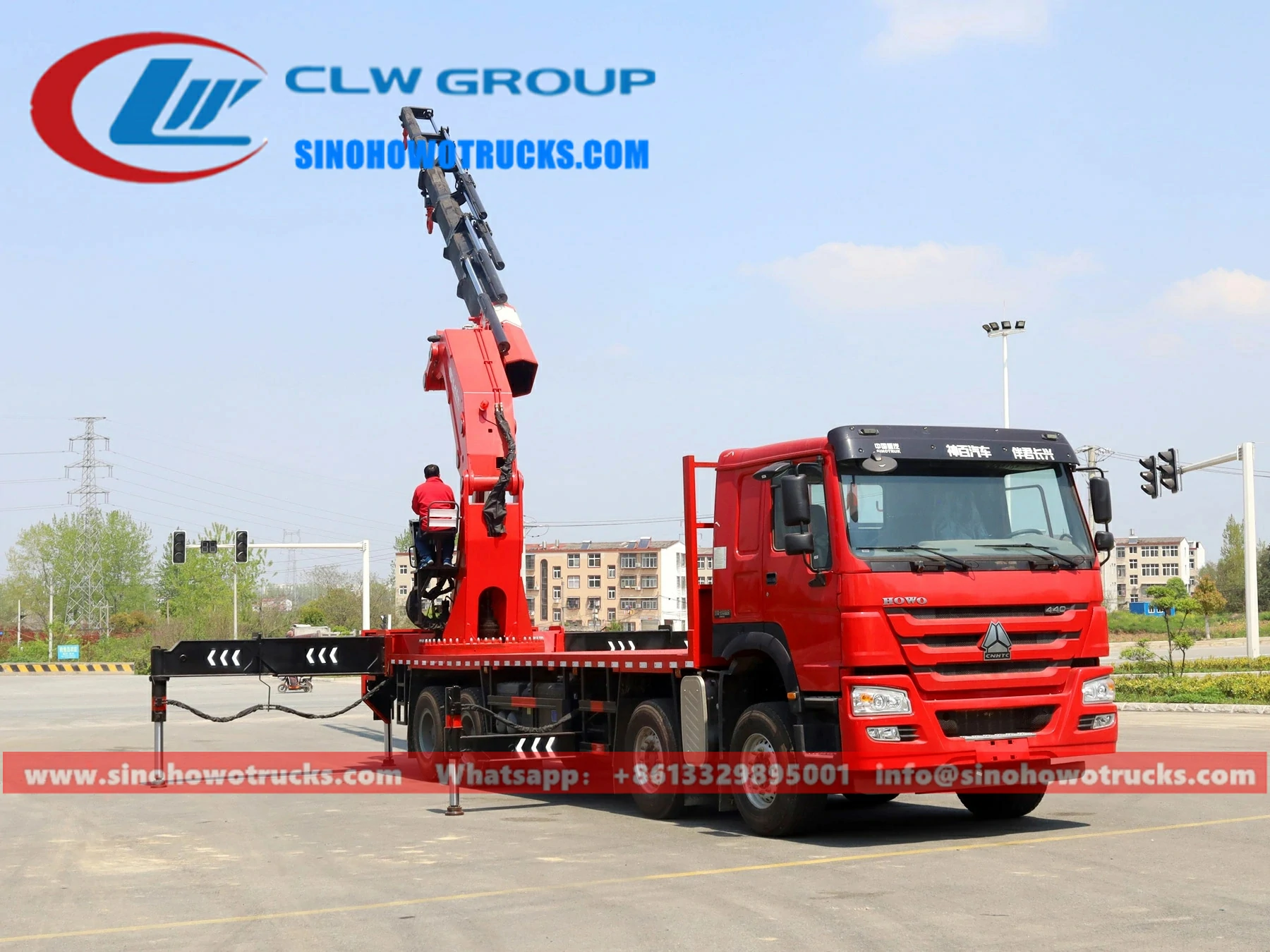

Sinotruk Howo 110 ton construction crane truck Description:
- Sinotruk Howo 110 ton construction crane truck also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- 6X4 HOWO chassis ensures perfect performance in driving
- Sinotruk technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
Specification:
Sinotruk Howo 110 ton construction crane truck Sierra Leone | |||||
Main specification | Chassis brand | Sinotruk HOWO | |||
Chassis model | ZZ1317N4667W | ||||
Overall dimension(L*W*H) | 12500*2550*4050mm | ||||
Kerb weight | 21500kg | ||||
Gross weight | 41,000kg | ||||
Drive modle | 8*4, left hand drive | ||||
Wheel Base | 1800+4600+1350 mm | ||||
Front Axle loading capacity | SINOTRUK HF7 Front Axle | ||||
Rear Axle loading capacity | SINOTRUK ST16 Heavy reduction drive axle | ||||
Transmission | HW19710,10 speed forward 2 reverse. | ||||
Maximum speed | 105km/h | ||||
Tyre size | 12.00R20, with one spare tyre | ||||
Engine horse power | 371hp | ||||
Engine emission standard | EURO 2 | ||||
CRANE PARAMETERS | |||||
Crane model | SQ330ZB5 | ||||
Max Lifting Height(m) | 15.7 | ||||
Max lifting capacity(kg) | 16000 | ||||
Max lifting moment(T.M) | 40 | ||||
Max working radius(m) | 13.5 | ||||
Type of Crane | Floding boom crane | ||||
Recommend Powe(kw) | 37 | ||||
Rated Oil Flow of Hydraulic System(L/min) | 64 | ||||
Rated Pressure of Hydraulic System(MPa) | 28 | ||||
Oil Tank Capacit(L) | 250 | ||||
Rotation Angle | 360° all rotation | ||||
Crane Weight(kg) | 5000 | ||||
Installation Space(mm) | 1530 | ||||
CARGO BOX | |||||
Dimension | 8000*2350*600mm | ||||
Rear bumper | Carbon steel | ||||
Side Under Run | Carbon steel | ||||
Mud guard / Mud Flap | with Mudguard and rubber mud flap | ||||
Spare Wheel Bracket | 1piece | ||||
Light | Electrical system in accordance to Chinese standard, complete with Chinese’s light for tail, signal, reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. | ||||
Painting | 1 Coat of anticorrosive prime, 2 coats of final paint . Colour as request |
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style:
Factory Advantage:
- 18 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
