6×6 Sinotruk Howo all terrain 14 ton lorry mounted crane Description:
- 6×6 Sinotruk Howo all terrain 14 ton lorry mounted crane also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
- 6X4 HOWO chassis ensures perfect performance in driving
- Sinotruk technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)

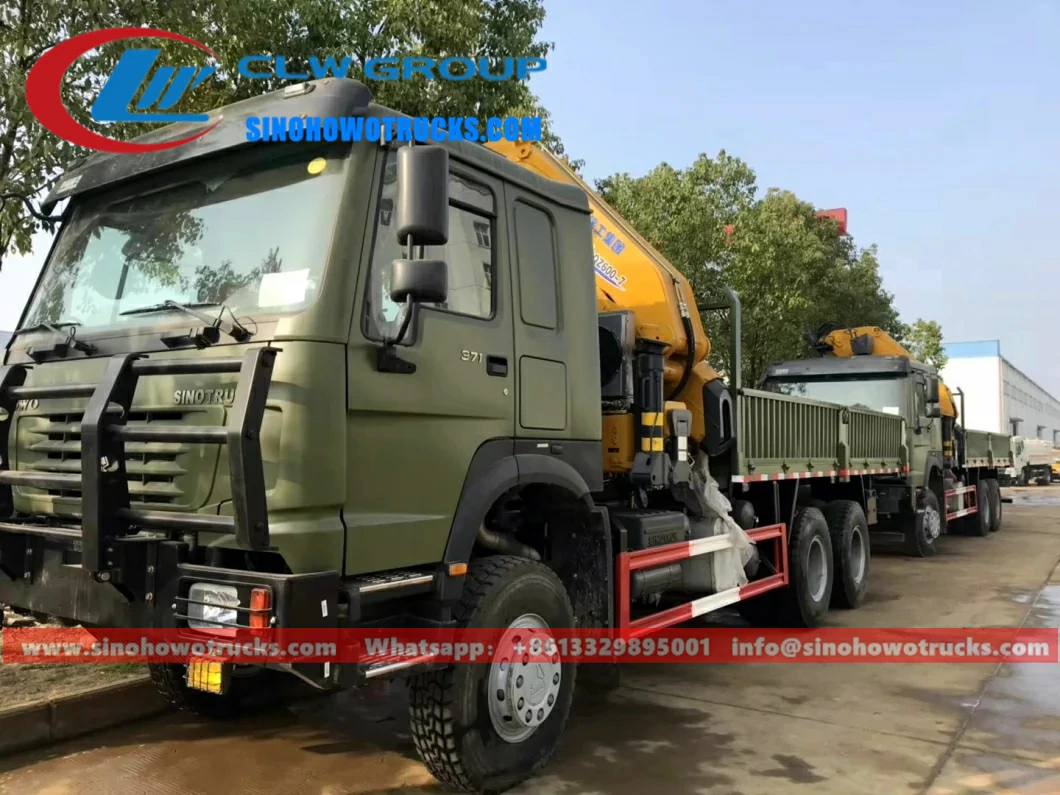

6×6 Sinotruk Howo all terrain 14 ton lorry mounted crane Niger
|Cab||SINOTRUK HW76 Lengthen cab, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner|
|Wheels & tire||11.00r20|
|RHD or LHD||optional|
|Curb weight (Kg)||16270|
|Maximum output Kw||247|
|Maximum torque N.m||1350|
|Type||6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine|
|Sinotruk brand, Euro 2|
|Transmission||HOWO 15710 ,10 speed forward and 2 reverse, manual|
|Brake System||air brake ,exhaust brake|
|Color and LOGO||customized|
|crane||Model||SPS30000(sany)||Oil tank capacity||200L|
|Max lifting height||20.5m||Max lifting moment||30T.m|
|Max working radius||18.1m||Length of the basic boom||5.6m|
|Max loading||12000kg||Weight of crane||4650kg|
|Type||Straight arm||Recommended hydraulic flow||100L/min|
|Arms number||5||Outrigger space||6000mm|
|Turning angle||360||Rated hydraulic pressure||29MPa|
|Standard configuration||truck crane equipped between the cabin and van body, mechanical leg|
|Optional configuration||Any other famous brand crane, it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional.|
|Delivery date||Within 20 days after receipt advance|
|Packing||Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.|
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
