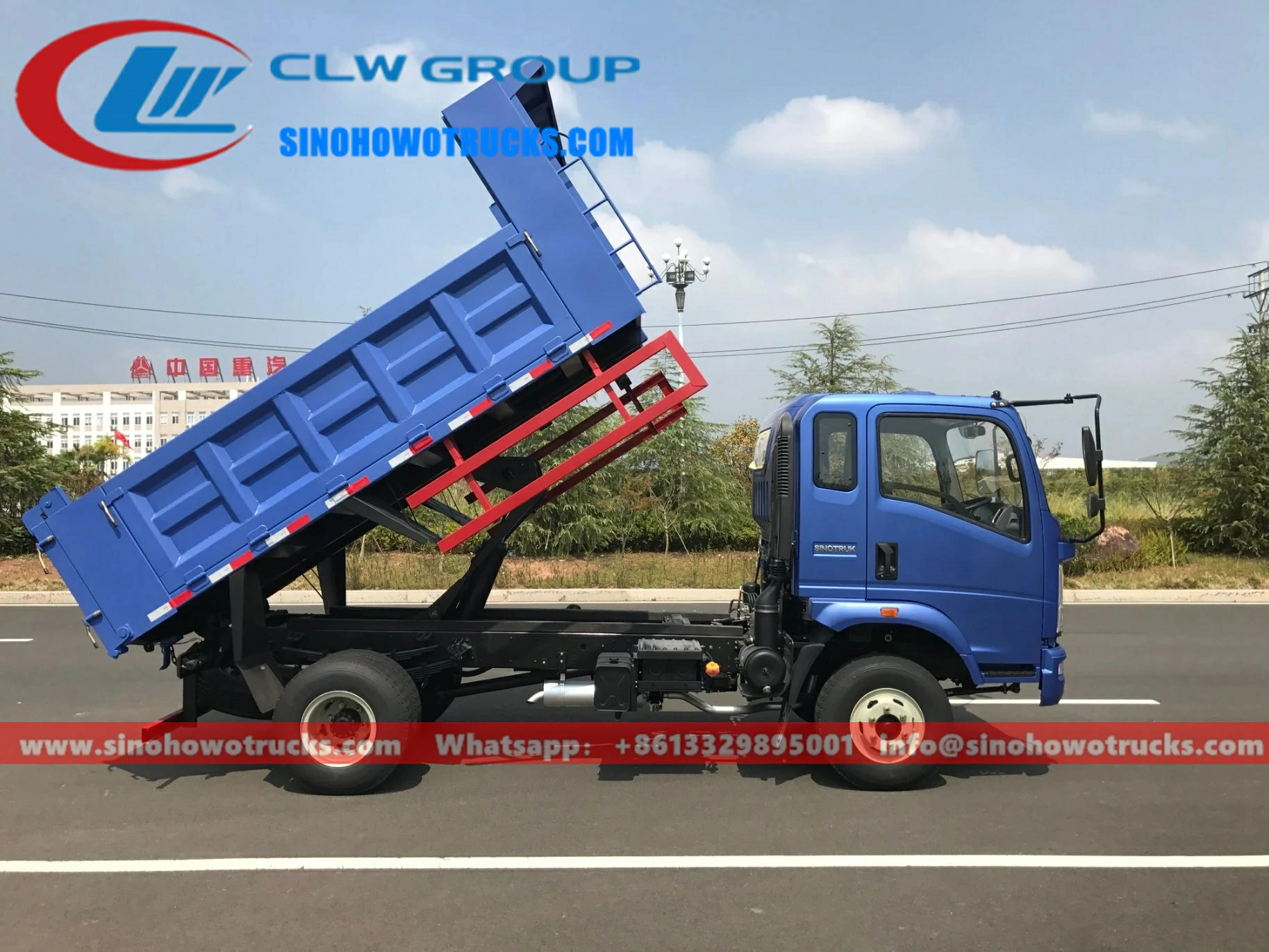

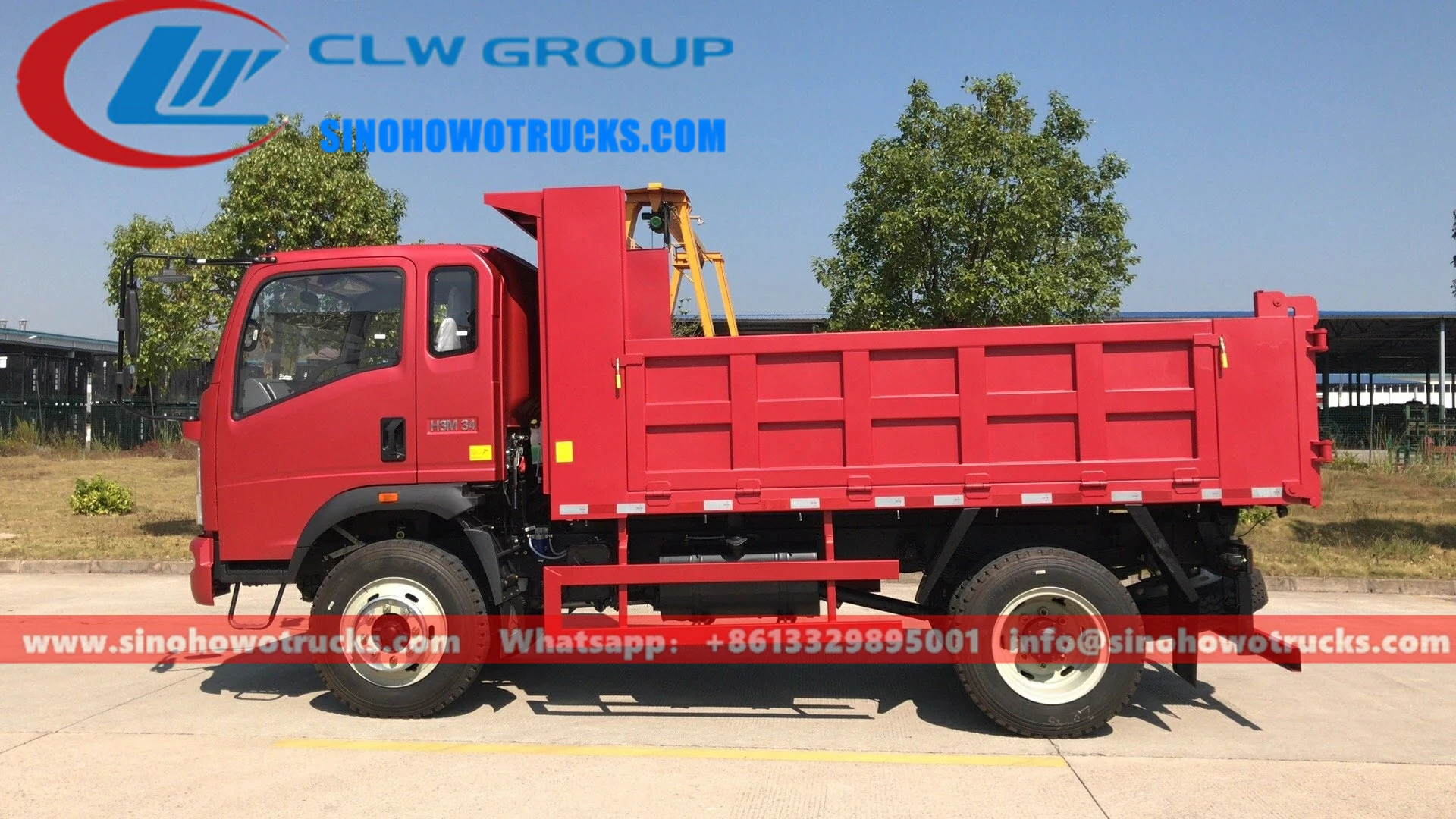

Sinotruk Howo 8 cube dumper truck Description:
- Sinotruk Howo 8 cube dumper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
- Sinotruk HOWO chassis, perfect performance
- Sino engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
|Sinotruk Howo 8 cube dumper truck for sale Kenya|
|Cab||Single row cab, with power steering. Electronic flameout|
|Driving Type||4*2 Left/Right hand driving|
|Max Speed (km/h)||110|
|Mass in working order ( kg)||4930|
|F/R track base (mm)||1504/1425|
|F/R overhang (mm)||1015/1815|
|Clutch||Single-plate dry diaphragm spring clutch|
|Steering||Hydraulic steering with power assistance|
|Fuel Type||Diesel fuel|
|Type||Water-cooled four-stroke,, direct injection, turbocharged|
|Max output power/rotate speed (hp /rpm )||115/3200|
|Max torque/rotate speed(N.m/rpm)||300/1600-2400|
|Braking system||Service Brake||Compressed air brake|
|Park Brake||Spring energy|
|Auxiliary brake||engine exhaust brake|
|Dump box dimension (L*W*H)(mm)||4200*1900*550|
|Dump box material||Carbon steel|
|Dump box thickness (mm) bottom/side||4/3|
|Hydraulic cylinder||Middle-placed T-Shape cylinder|
|Dump box color||According to customer’s requirement|
Dumper truck Structure:
Tipper truck parts tools and instructions:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
