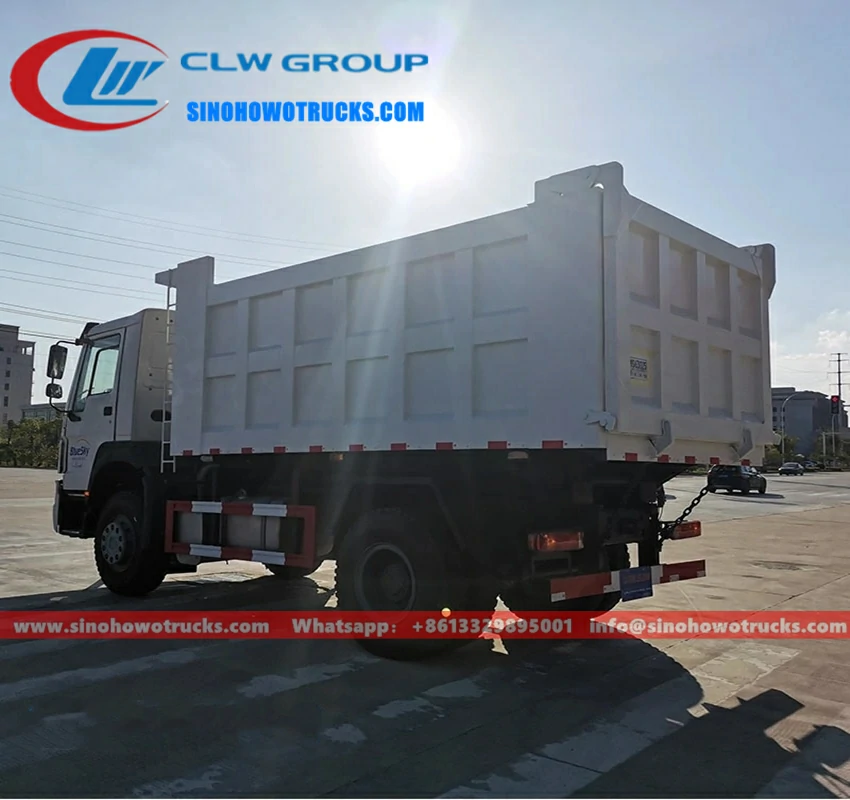

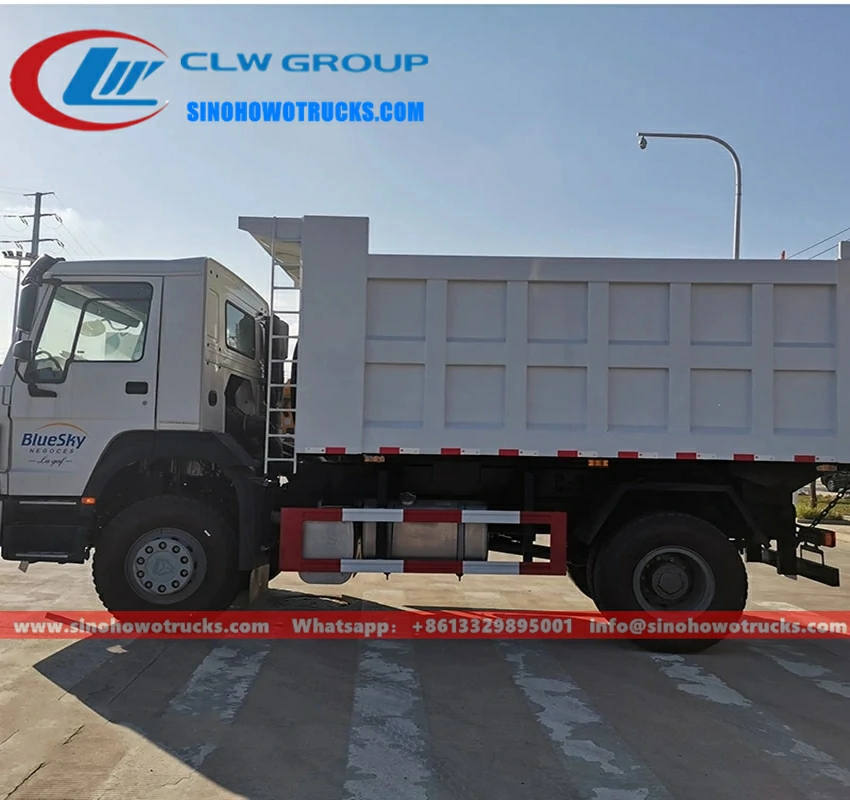

6 wheel Sinotruk Howo 15 ton medium duty dump truck Description:
- 6 wheel Sinotruk Howo 15 ton medium duty dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- Sinotruk HOWO chassis, perfect performance
- Sino engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
Specification:
Cabin | Driving type 6×4 LHD/RHD
6 wheel Sinotruk Howo 15 ton medium duty dump truck madagascar |
|
AC, wind deflector, power window, central lock is optional | ||
Overall Dimensions | 8500×2500×3000 mm | |
Wheel Base | 4500+1350 mm | |
GVW | 10465kg | |
Front Axle | 5 ton | |
Rear Axle | 10 ton | |
Engine | Brand | YUCHAI |
Horse Power (HP) | 290 | |
Emission standard | Euro II / other standard engine is optional | |
Max Speed | 110 km/h | |
Tire | 12.00R20 | |
Clutch | Diaphragm-spring clutch | |
Transmission | 9 forward and 1 reverse | |
Steering | Hydraulic steering with power assistance | |
Oil Tank | 800L | |
Cargo Dimensions | 8860x1530x480 mm | |
Brake System | Service brake: compressed air brake | |
Parking brake :spring energy,compressed air operating on rear wheels | ||
Auxiliary brake:engine exhaust valve brake | ||
Electrics | Operating voltage:24V,negative grounded | |
Batteries:2×12 V | ||
Horn,headlamps,fog lights,brake lights,indicators and reverse light |
Dumper truck Structure:
Tipper truck parts tools and instructions:
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping:
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
