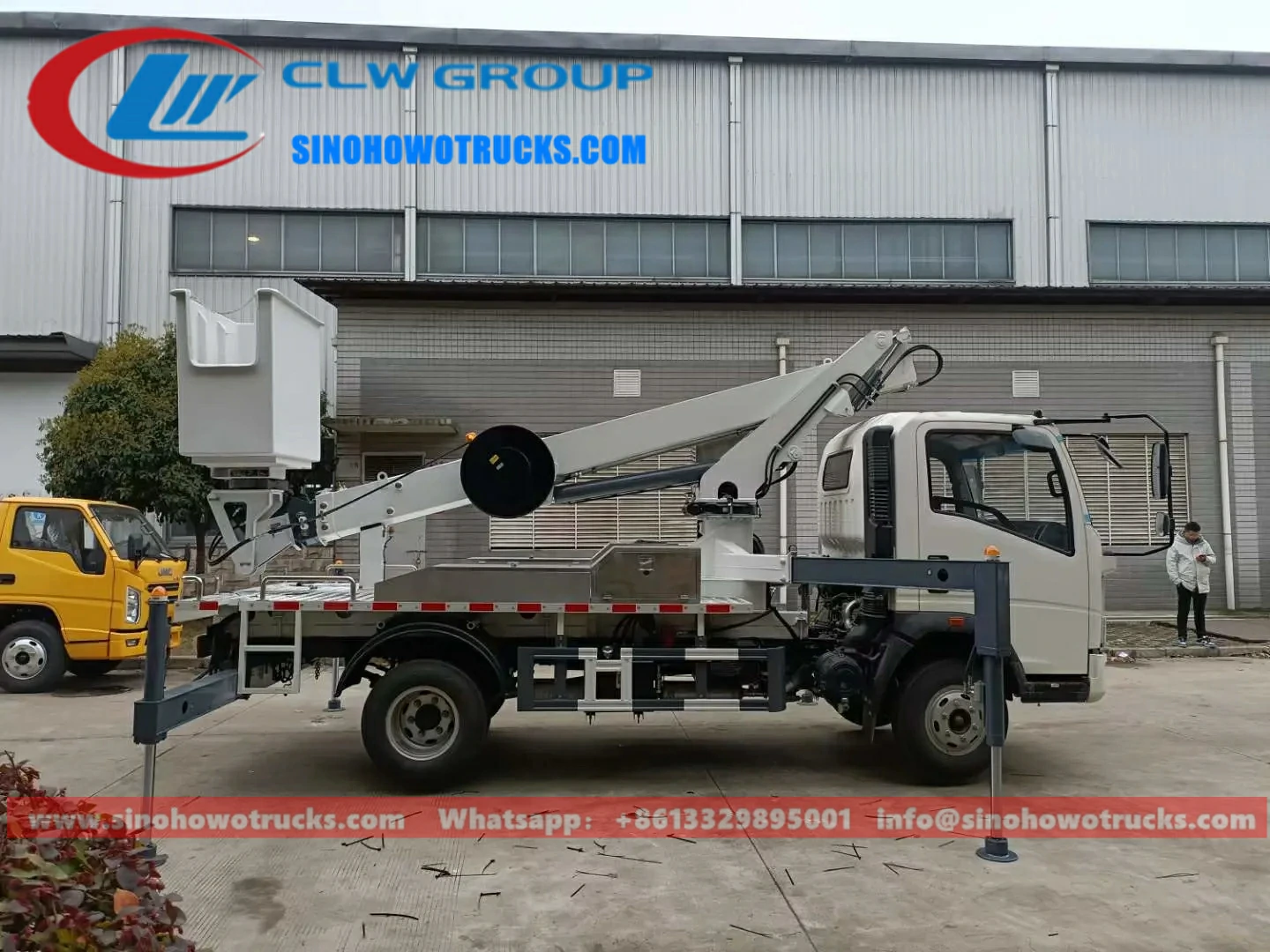

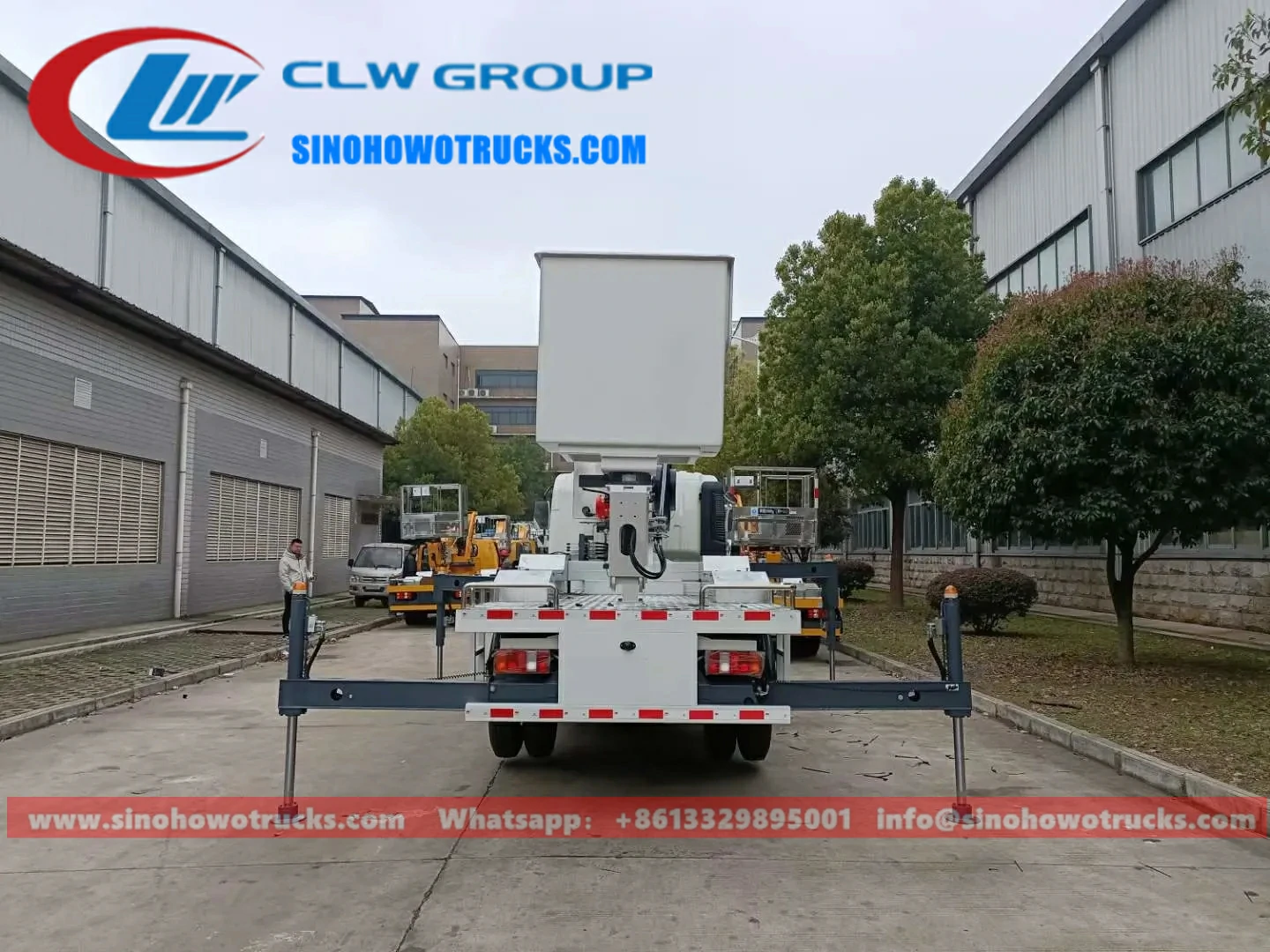

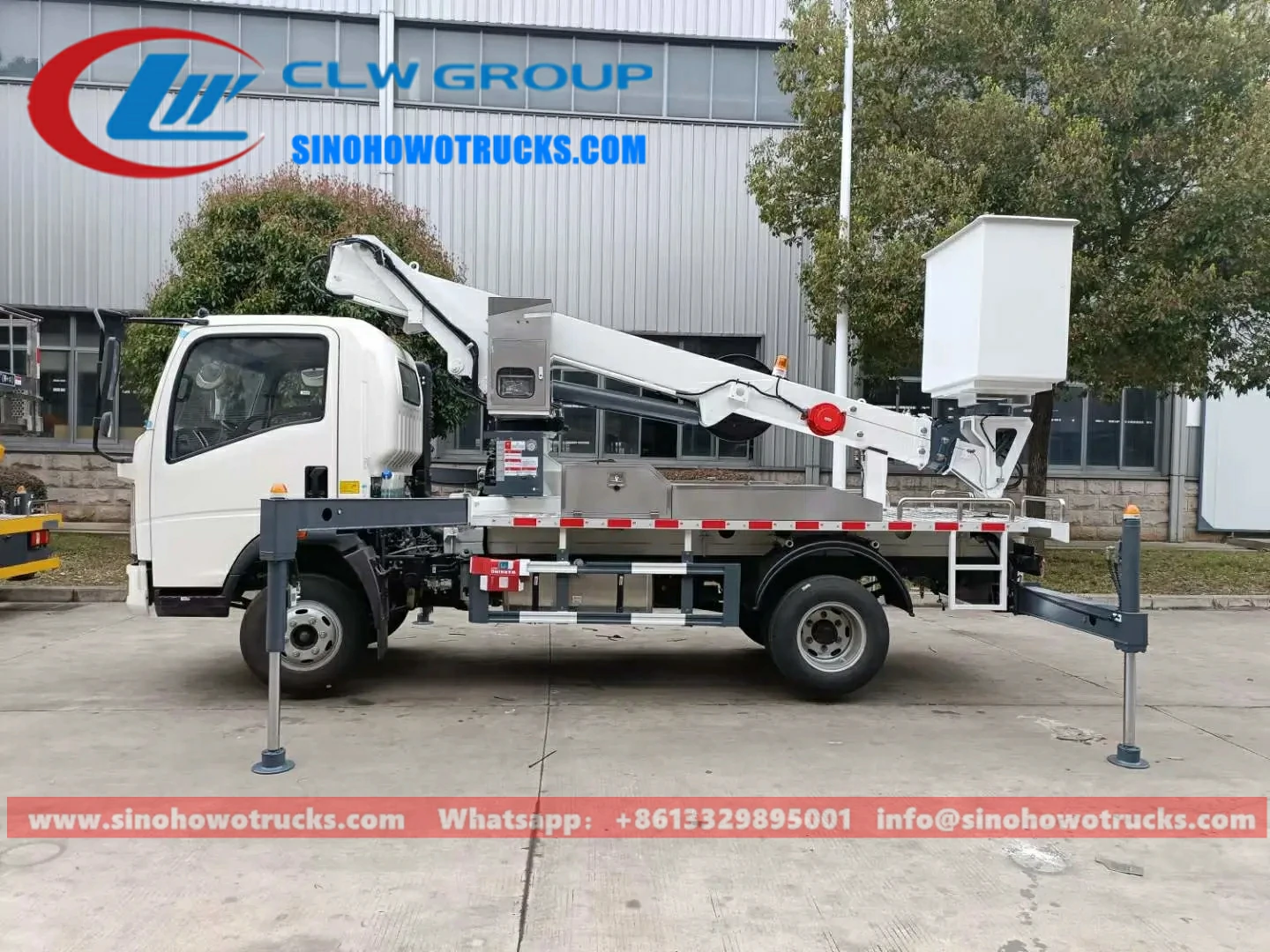

Sinotruk Howo 23meters man lift boom truck Description:
- Sinotruk Howo 23meters man lift boom truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck, Hydraulic telescopic boom truck, Truck-mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fiberglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
Specification:
| Sinotruk Howo 23meters man lift boom truck Dominican Republic | |||
| Product name | aerial platform truck | Chassis model | ZZ1040 |
| Lift height customization | 12 to 22meter | Total mass (kg) | 8000 |
| Engine horsepower | 120HP | Rated load mass (Kg) | 200 |
| Engine name | CY4102 | Emission Standards | Euro 3 |
| Dimensions (MM) | 6500x2350x3400 | Fuel type | Diesel |
| Number of tires | 6 | Tire specifications | 7.50R16 |
| Wheelbase (MM) | 3800 | Maximum speed (km/h) | 95 |
| Front track | 1910 | Rear track | 1940 |
| Performance profile | Imported reversing valve and hydraulic cylinder are used for commutation and balance, and the operation is flexible and convenient. Four H-type hydraulic legs are installed in the vehicle, which can be lifted and lowered at the same time to ensure the stability and safety of the whole vehicle during operation. It can be operated up and down, and the hook is installed. The maximum lifting weight of the hook is 200kg. The full telescopic is the working arm and the 360 degree rotation. Up and down two sets of operating systems, complete a variety of work on the work bucket and turntable, optional 14-32 meters series straight arm aerial work. | ||
| Dedicated configuration | Blue brand telescopic boom aerial work car function introduction: | ||
| 1. The front V rear H-shaped legs have good stability and can be operated simultaneously or separately to adapt to various working conditions. | |||
| 2, the main supporting hydraulic and electrical components: load-sensitive proportional valves, balancing valves, controllers, etc. are produced by well-known domestic manufacturers. | |||
| 3. The chassis is equipped with Jiangling Guosan chassis, equipped with air conditioning, and the steering wheel is hydraulically assisted. | |||
| 4. Configure the vehicle level to ensure the level of the vehicle and ensure safety. | |||
| 5, computer control, automatic limiting, dangerous work alarm, excellent safety performance. Get off the vehicle and display the real-time operating conditions. | |||
| 6. Hexagonal working arm, synchronous telescopic, compact structure, high working efficiency and large working range. The telescopic cylinder is external and the chain telescopic mechanism makes it easier to observe the fault point and facilitate maintenance. | |||
| 7. The whole vehicle electrical appliance adopts CAN bus control system, and the line is neat and simple. There are two operations in the whole vehicle: platform operation, ground operation, safe and reliable, and high work efficiency. | |||
| 8. The slewing mechanism adopts adjustable type for easy adjustment. | |||
| 9. Optional 14, 16 , 18, 20, 22,24,26,28,30,32 meters series of aerial work. | |||
Folding arm aerial platform truck Working parameter:
Manlift boom truck New craft:
Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
-
The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
-
Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
-
The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
-
Fully telescopic working arm, high operating efficiency, wide operating range
-
Octagonal cross section of working arm, good love, made of high strength material, good reliability
-
There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
-
Remote control system of engine speed, easy to operate and high efficiency
-
The support legs can be operated on both sides of the cab, which is convenient and efficient.
-
The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
-
360-degree turntable rotation, wide operating range, improve efficiency.
