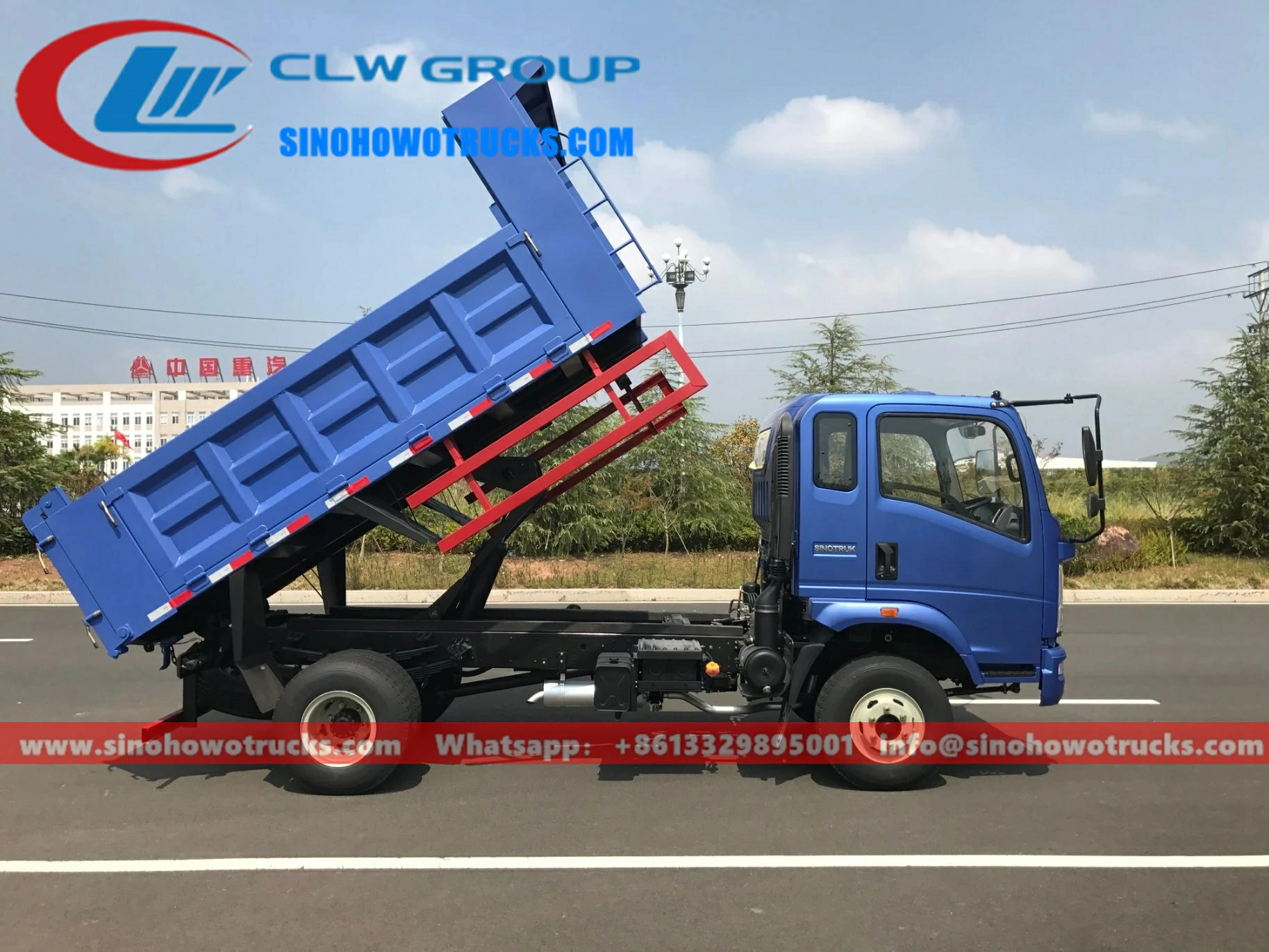

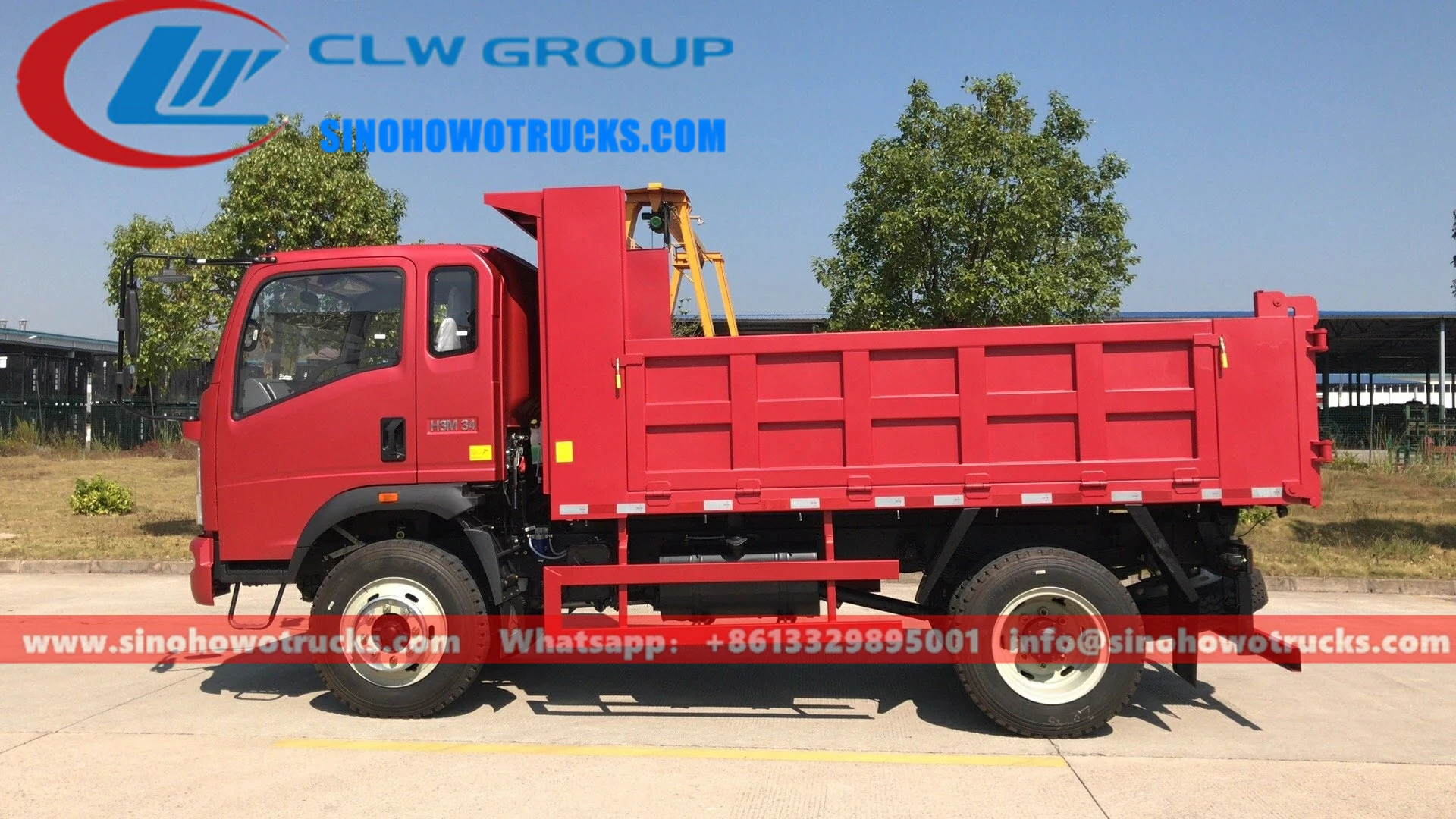

Sinotruk Howo 8 cube dumper truck Description:
- Sinotruk Howo 8 cube dumper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- Sinotruk HOWO chassis, perfect performance
- Sino engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
Specification:
| Sinotruk Howo 8 cube dumper truck for sale Kenya | ||
| Truck model | CLW3070GZXC | |
| Cab | Single row cab, with power steering. Electronic flameout | |
| Driving Type | 4*2 Left/Right hand driving | |
| Max Speed (km/h) | 110 | |
| Overall dimension(mm) | 6190,5950×1990×2590(mm) | |
| GVW( kg) | 7300 | |
| Mass in working order ( kg) | 4930 | |
| Wheelbase(mm) | 3360 | |
| F/R track base (mm) | 1504/1425 | |
| F/R overhang (mm) | 1015/1815 | |
| Approach/Departure Angel | 24/14 | |
| Tire | 7.00-16,7.00R16 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 5-speed | |
| Bridge | Front axle | 2.6T |
| Rear axle | 4.7T | |
| Enging | Model | 4KH1-TCG40 |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust(ml) | 2990 | |
| Max output power/rotate speed (hp /rpm ) | 115/3200 | |
| Max torque/rotate speed(N.m/rpm) | 300/1600-2400 | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | engine exhaust brake | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Dump box dimension (L*W*H)(mm) | 4200*1900*550 | |
| Dump box material | Carbon steel | |
| Dump box thickness (mm) bottom/side | 4/3 | |
| Hydraulic cylinder | Middle-placed T-Shape cylinder | |
| Dump box color | According to customer’s requirement | |
Dumper truck Structure:
Tipper truck parts tools and instructions:
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
