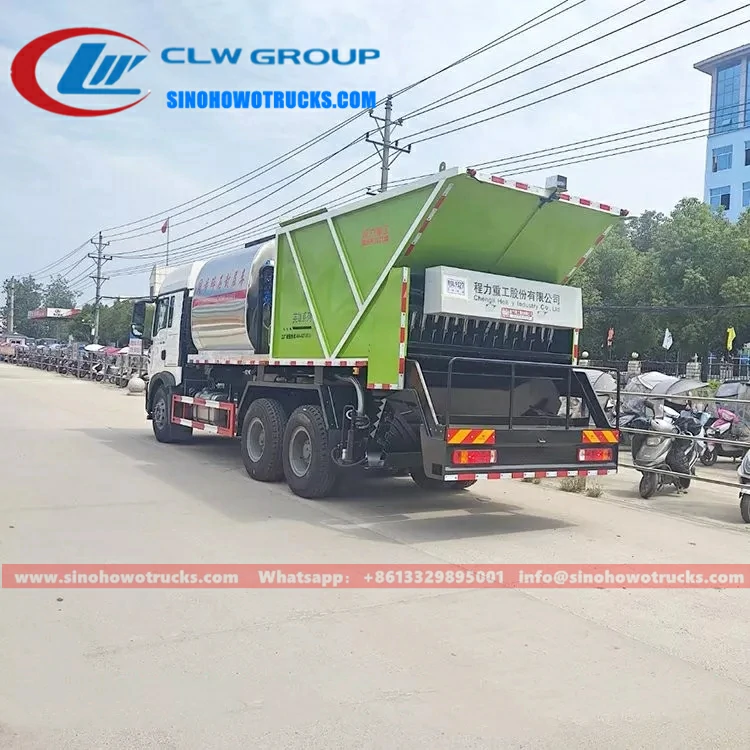

Sinotruk Howo 20m3 Asphalt and Gravel Synchronous Sealing Truck Description:
- Sinotruk Howo 20m3 Asphalt and Gravel Synchronous Sealing Truck is to spray the asphalt binder and spread the crushed stone at the same time so that the asphalt binder and the aggregate have the fullest contact to achieve the maximum degree of bonding between them.
Advantage:
Chassis:
- HOWO truck chassis, perfect performance
- SINO series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
Asphalt distributor System:
- Automatic asphalt distributor truck boasts three layers. It can adjust the spray amount according to its operational speed.
- The whole asphalt spraying process can be finished in the cab.
- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- A Computer control system adopts a modular design for lower accident rates and maintenance.
- A temperature of asphalt in the tank is kept below or equal to two degrees per hour
- The distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
Specification:
name
|
Model and Specification
|
owning system
|
Sinotruk Howo 20m3 Asphalt and Gravel Synchronous Sealing Truck Nigeria |
car chassis
|
ZZ 1 257 V 5847 F 1
|
chassis
|
Sinotruk Howo cab
|
engine
|
MC 0 9.35-60
|
Sinotruk 350 hp, China VI
|
|
Asphalt tank capacity
|
8 cubic meters
|
Asphalt tank + stone silo |
Inner tank volume
|
stone silo
|
1 2 cubic meters
|
inner lift
|
|
Insulation layer thickness
|
50mm _ _
|
Rock wool insulation
|
|
Outsourced stainless steel
|
1 mm
|
1 thick stainless steel plate
|
|
PTO _
|
full power PTO
|
source of motivation
|
Can be sprayed from scratch
|
Triple gear pump
|
CPC 4 – 50-20-16
|
Hydraulic system
|
Tianjin
|
Proportional valve
|
EFBG – 03-160 – HF
|
Taiwan
|
|
Asphalt pump motor
|
05-130- BD 3 1
|
Ningbo Hanzhu
|
|
asphalt pump
|
QGB 950 _
|
asphalt
sprinkler system |
Expensive, 950L/min n
|
Number of nozzles
|
3 2
|
The control mode is: 1 control 1
|
|
burner
|
G 20 (200,000 kcal/hour)
|
heating system
|
Two Riyadh diesel burners
|
Heat transfer oil pump
|
RY 2 5-25-160
|
Hebei
|
|
Heat transfer oil pump motor
|
380 V-2.2KW-2 pole
|
Lu’an, Anhui
|
|
Stone spreading method
|
gravity flow
|
Chips Scattering System
|
16 way material gate (computer control)
|
control system
|
Cab touch screen computer control +
Rear work platform control (backup ) |
control system |
Control system adopts: Siemens Modular design, running speed Faster and smoother, lower failure rate
|
speed sensor
|
Ni 5 – G 12
|
Turck , Germany
|
|
temperature controller
|
WZP – 230
|
Shanghai Xinghui
|
|
generator
|
5.5 KW Honda Gasoline Generator
|
power system
|
joint venture
|
Advantages of our Asphalt Bitumen Distributor
- Best System:
- Spraying amount and working width can controlled by hands or machine, each spray nozzle can be controlled separately. To control the determinant of spray nozzles make a free combination, in the driver’s cab or rear platform, we can arbitrary adjust the spraying width.
- The automatic control system can measure the speed of the truck and calculate the revolutions of bitumen pump by input spraying volume, width and bitumen type to adjust the revolutions automatic.
- We use vehicular fast heating system (10 – 15 ℃ /h) which can improve heating efficiency and reduce construction time to ensure the temperature when we are spraying.
- We have flushing nozzle system which can flush out the remain bitumen from spray nozzle by using diesel and high pressure air.
- Best Machine Parts:
- We take international famous components to build the key parts of our truck such as hydraulic pump, hydraulic motor, bitumen pump, proportional valve, automatic control system, we make this effectively to extend our truck’s working life.
- We are using international advanced viscosity asphalt. so that our pump can suck outside bitumen into the box and spray it out of the box
- Our heating system use Italy imported burner which have automatic ignition and temperature controlling function.
- Individual Device:
- The outside of all heat pipes have heat insulator which can reduce the heat loss and avoid to be scalded.
- The structure of our spraying pole is three-phase and folding type, you can do dual and multiple spraying by moving spraying pole up and down and broaden spraying range by moving the spraying pole right and left, furthermore it can effectively avoid some barriers.
- We have unloading and depositing slot, liquid level meter, safety device and alarm inside the bitumen box.
- Warm Prompt:
- The density of bitumen is 1150-1250kg/m³
