Sinotruk Howo 14m3 Road Asphalt Concrete Spreader Truck Description:
- Sinotruk Howo 14m3 Road Asphalt Concrete Spreader Truck is to spray the asphalt binder and spread the crushed stone at the same time so that the asphalt binder and the aggregate have the fullest contact to achieve the maximum degree of bonding between them.
- HOWO truck chassis, perfect performance
- SINO series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
Asphalt distributor System:
- Automatic asphalt distributor truck boasts three layers. It can adjust the spray amount according to its operational speed.
- The whole asphalt spraying process can be finished in the cab.
- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.

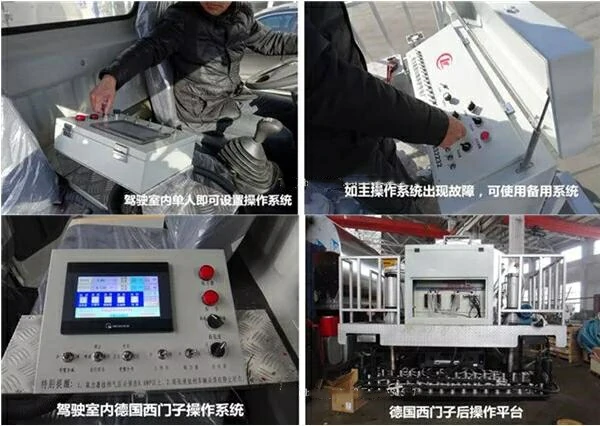

- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- A Computer control system adopts a modular design for lower accident rates and maintenance.
- A temperature of asphalt in the tank is kept below or equal to two degrees per hour
- The distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
|Items||Descriptions||Specifications and Types|
|General||Truck Name||Sinotruk Howo 14m3 Road Asphalt Concrete Spreader Truck South Africa|
|Gross Vehicle Weight(kg)||18000|
|Curb Weight (kg)||11380|
|Overall Dimensions (mm)||8860×2500×3530|
|Engine Brand & Model||Cummins, ISDe210 30|
|Fuel Type & Emission||Diesel, Euro III|
|Max. Torque||650 Nm at 1200~1700 rpm|
|Engine Type||6 cylinders, Water cooled, turbocharged, after cooled, High pressure common rail fuel system, cold start.|
|Cab||Kingrun one row with single sleeper cab, adjustable driver’s seat, air conditioning system, electric window, central lock.|
|Tire Specification||275/80R22.5 Tubeless tire|
|Front/Rear Axle||6T loading capacity, Elliot type, I beam section/10T loading capacity, Single reduction, ratio 4.44|
|Steering Wheel||Left hand drive with power-assisted|
|Gear Box||6 forward gears & 1 reverse, synchronized, manual|
|Tank||Asphalt /Gravel Tank Volume(m³)||3.6/6|
|Pump||Asphalt Pump||High viscosity asphalt pump, 950L/min|
|Hydraulic and Control||Hydraulic System||Tai wan proportioner, automatic reversing valve and relief valve|
|Control System||Germany Siemens brand, cabin touch type controlled by computer|
|Burner & Heating||Italy imported G20, automatic heating of heat transfer oil|
|Generator||Honda 5.5kw gasoline|
|Spray system||Asphalt spray nozzle||30 pcs intelligent nozzles , controlled one by one, 14 ways gravel channels|
Advantages of our Asphalt Bitumen Distributor
- Best System:
- Spraying amount and working width can controlled by hands or machine, each spray nozzle can be controlled separately. To control the determinant of spray nozzles make a free combination, in the driver’s cab or rear platform, we can arbitrary adjust the spraying width.
- The automatic control system can measure the speed of the truck and calculate the revolutions of bitumen pump by input spraying volume, width and bitumen type to adjust the revolutions automatic.
- We use vehicular fast heating system (10 – 15 ℃ /h) which can improve heating efficiency and reduce construction time to ensure the temperature when we are spraying.
- We have flushing nozzle system which can flush out the remain bitumen from spray nozzle by using diesel and high pressure air.
- Best Machine Parts:
- We take international famous components to build the key parts of our truck such as hydraulic pump, hydraulic motor, bitumen pump, proportional valve, automatic control system, we make this effectively to extend our truck’s working life.
- We are using international advanced viscosity asphalt. so that our pump can suck outside bitumen into the box and spray it out of the box
- Our heating system use Italy imported burner which have automatic ignition and temperature controlling function.
- Individual Device:
- The outside of all heat pipes have heat insulator which can reduce the heat loss and avoid to be scalded.
- The structure of our spraying pole is three-phase and folding type, you can do dual and multiple spraying by moving spraying pole up and down and broaden spraying range by moving the spraying pole right and left, furthermore it can effectively avoid some barriers.
- We have unloading and depositing slot, liquid level meter, safety device and alarm inside the bitumen box.
- Warm Prompt:
- The density of bitumen is 1150-1250kg/m³
- Details show of 10m3 Asphalt Sprayer Bitumen Sprayer Trucks For Road Construction Price
Asphalt distributor truck Working parameter:
ISUZU Asphalt delivery truck details:
ISUZU Asphalt delivery truck optional style：
Asphalt distributor machine Tools and instructions:
