Sinotruk Howo 25 ton freezer van Description:
- Sinotruk Howo 25 ton freezer van also called a Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a cooling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk Howo engine & gearbox, super powerful, no overhaul within 500,000 km.
- The refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
|
VEHICLE SPECIFICATION
|
DESCRIPTION
|
|
Type of Vehicle
|
Sinotruk Howo 25 ton freezer van for sale Zimbabwe |
|
Cab
|
HW76 cab, one sleeper with air conditioner
|
|
Driving Position
|
Right /Left hand Driving
|
|
Drive model
|
8×4
|
|
Dimensions(LxWxH)
|
11985*2500*4150 MM
|
|
Engine
|
|
|
Model
|
WD615.47
|
|
Power
|
371hp/273kw.2000r/min
|
|
Emission
|
EURO II
|
|
Displacement(L)
|
9.896
|
|
Gear Box System
|
|
|
Gear Box
|
HW19710
|
|
Axles
|
|
|
Front Axle Model
|
HF9 axle. Capacity: 9000kg
|
|
Rear Axle
|
HC16 axle. Capacity:2X 16000kg
|
|
Ratio of rear axle
|
4.8
|
|
Wheels & Tyres
|
|
|
Type
|
1200R20
|
|
Material
|
Steel tires
|
|
Quantity
|
12+1 spare
|
|
body
|
|
|
Cargo body outside dimension
|
8500x2500x2650 MM
|
|
Cargo body inside dimension
|
8330x2330x2440 MM
|
|
Material
|
FRP+PU
|
|
Thickness
|
Bottom: 105mm
Side and rear door: 85mm |
|
other
|
One pair door on the back side,The door frame lock is made of stainless steel and the edge is made of aluminum alloy
|
|
Refrigeration
|
|
|
Brand
|
Thermo King
|
|
Temperature
|
-30 degree—40 degree
|
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:

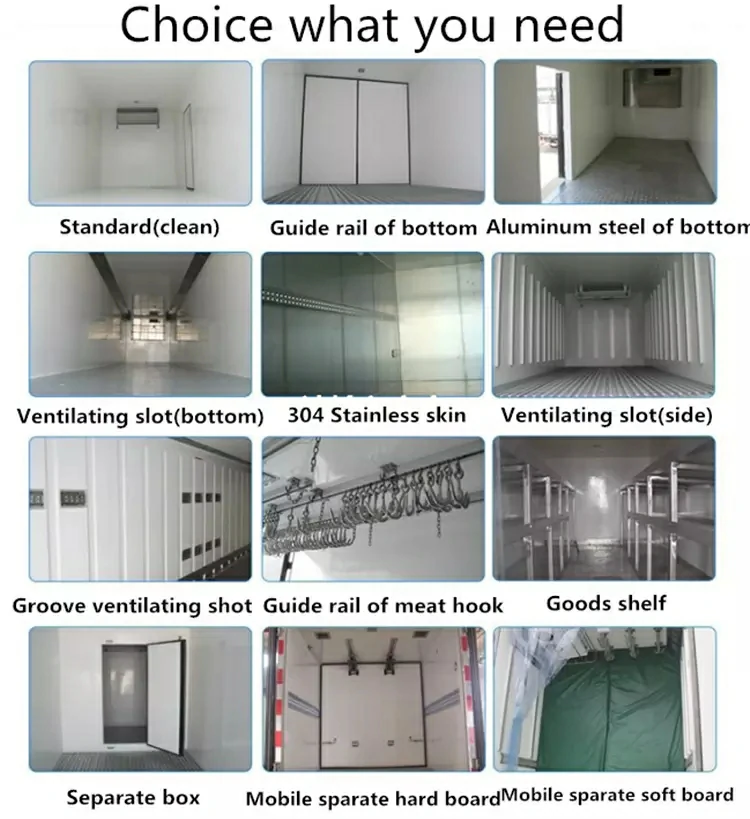

Sinotruk Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
