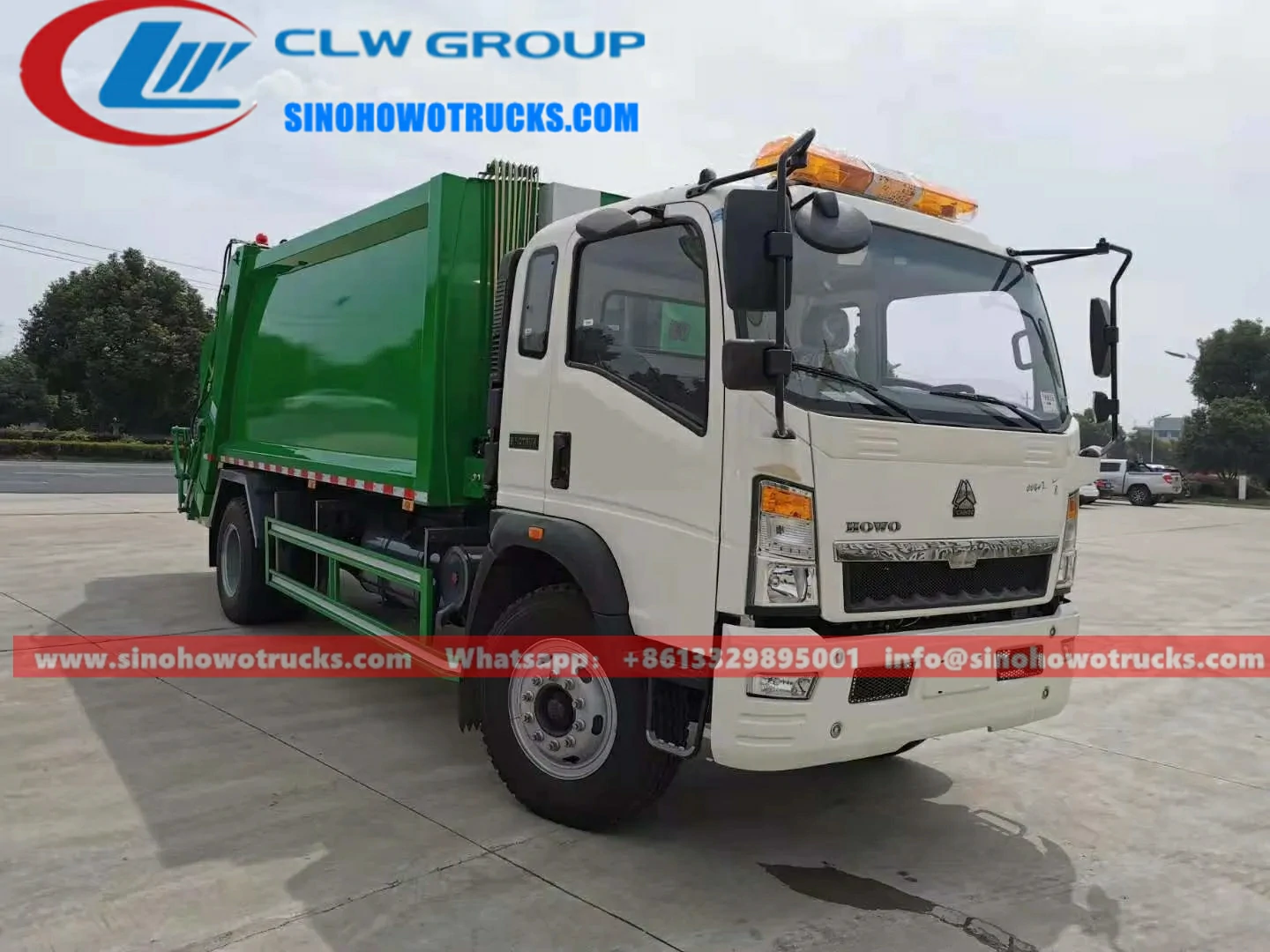

Sinotruck 8 tons compactor truck Description:
- Sinotruck 8 tons compactor trucks also called Truck-mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage trucks.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- HOWO 140HP light duty chassis, perfect performance
- Sinotruck engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| Sinotruck 8 tons compactor truck for sale Mozambique | |
| Chassis Model | ZZ1107D3815C1 (Left/Right-Hand Driving Type Optional) |
| Engine | Model: YN4102 Euro II, 116HP 4-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Gearbox | WLY646, 6 forward and 1 reverse, with Power Take-Off (PTO) |
| Front Axles | 2700kg with drum brake system |
| Rear Axles | 7200kg, double stage reduction (central+ hub), cast axle housing |
| Suspension | Front suspension: 9 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12+9 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | power steering, hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 8.25R16, with one spare tire |
| Fuel Tank Volume (L) | 120 |
| Dead Weight | 3500 |
| Gross Vehicle Weight (kg) | 10000 |
| Rated Loading Weight (kg) | 6500 |
| Overall Dimension (LxWxH) (mm) |
7545x2300x2700 |
| Wheelbase (mm) | 3800 |
| Cargo volume(m³) | 6/10/12/16/18/20/22 |
| Remark (Engine Power Option) | 116HP;141HP;154HP |
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material | High-strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
New craft:
Various rear loading systems:
customized drawing:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
