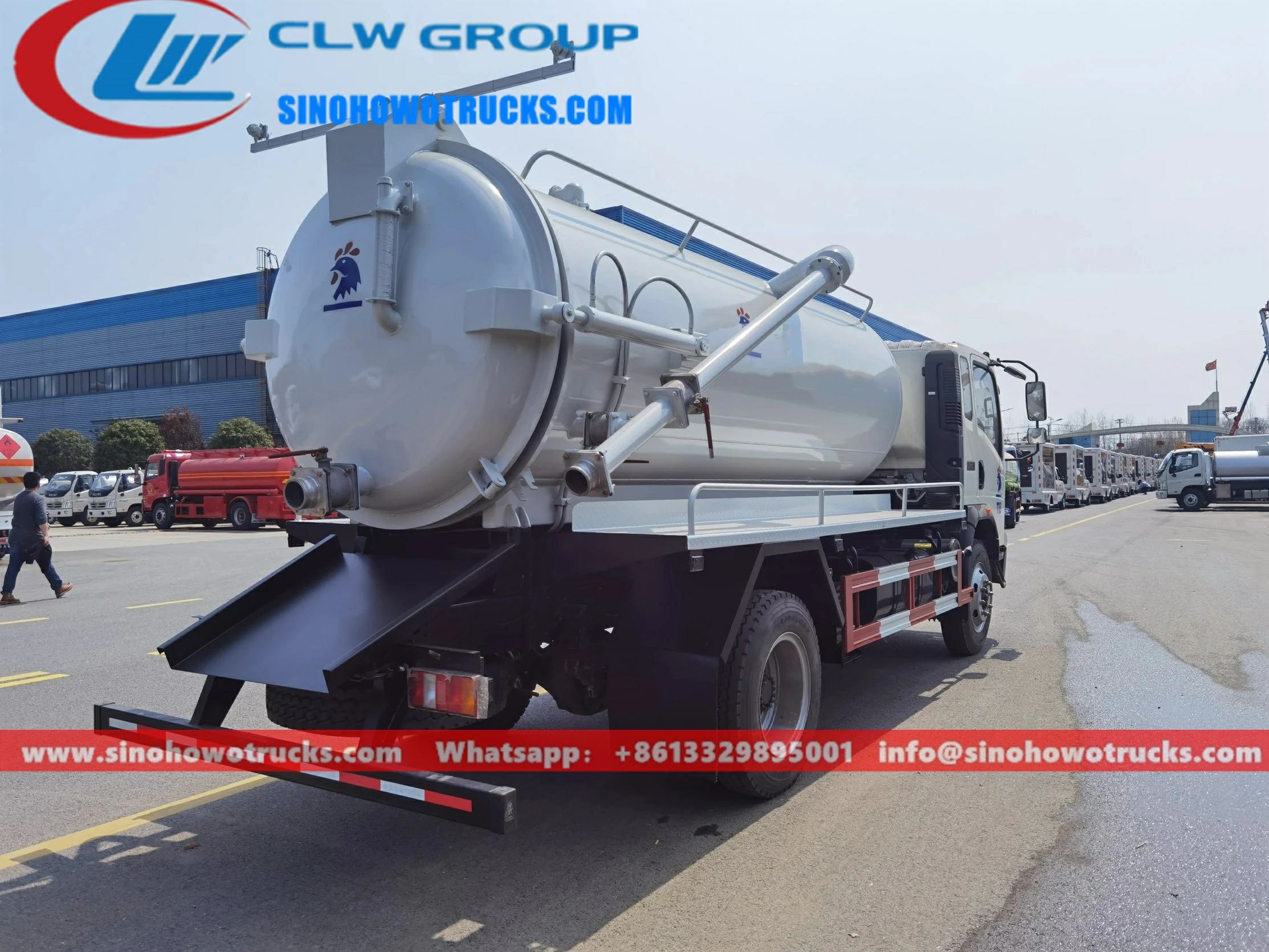

HOWO 8000liters sewer vacuum truck Description:
- HOWO 8000liters sewer vacuum trucks also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- A vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk HOWO chassis, perfect performance
- Sinotruk technology engine option, super-powerful, no overhaul within 500,000 km.
Specification:
| HOWO 8000liters sewer vacuum truck for sale Laos | ||
| Vehicle Description | ||
| Overall dimensions | 6800*2300*2700mm | |
| GVW | 7300kg | |
| Mass in working order | 4000kg | |
| Chassis brand | Sinotruk HOWO | |
| Traction type | 4*2 | |
| Tanker Description | ||
| Tanker | Capacity | 5cbm (5000 liters) |
| Material | 5mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Vacuum pump |
| Flux | 45(L/S) | |
| Rating speed | 500~800(r/min) | |
| Shaft power | 4(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5min, | |
| Effective suction range ≥ 8, | ||
| Max vacuum degree ≤ 15 Kpa, | ||
| dump angle ≥ 45 | ||
| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. | |
| Cylinder vacuum tank can be lifted hydraulically to | ||
| 40-45 degree. Rear door can be opened and closed hydraulically. | ||
| Optional configuration | Tanker material: stainless steel. | |
| Vacuum pump : Italy or Spain vacuum pumps. | ||
| Anti-rust coating inside tank | ||
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
