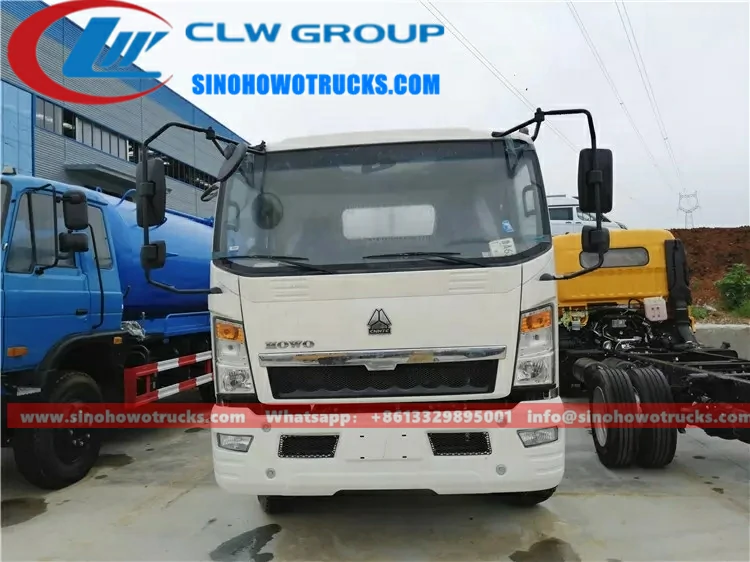

HOWO 10000liters toilet cleaning truck Description:
- HOWO 10000liters toilet cleaning trucks also called cesspit emptier, toilet vacuum truck, toilet liquid tanker vehicle truck, toilet waste trucks, septic tank truck, Septic pump truck.
- Fecal suction truck is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. Used to transport and unclog toilet feces.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk HOWO chassis, perfect performance
- Sinotruk technology engine option, super-powerful, no overhaul within 500,000 km.
Specification:
| Model | HOWO 10000liters toilet cleaning truck Central Africa | |
| Cabin | 1880 King Cab, with two seats and one bed, with Air Conditioner | |
|
Engine |
Horse Power (Hp/rpm) | 116hp |
| Type | 4-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | |
| Transmission | WLY6T46, 6 speeds forward and 1 speeds reverse. | |
| Front Axle | Steering with double T-cross section beam, Loading Capacity: 2,400kgs | |
| Driving Axle | Pressed axle housing, central reduction, Loading Capacity: 4,200kgs | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 7.00R16 | |
| Fuel Tank Capacity (L) | 100L Diesel Tank | |
| Kurb Weight (kg) | 5,000 | |
| Loading Capacity (kg) | 4,000 | |
| Gross Vehicle Weight (kg) | 9,000 | |
| Overall Dimension(L*W*H)(mm) | 6600×2300×2800 | |
| Tank Capacity(L) | 3,000 | |
| Tank Material | Carbon Steel | |
| Vacuum Pump Model | Jurop PN58D | |
| Max Air Flow | 5800L/min | |
| Time to suction full tank | 8-9mins | |
| Suction Depth | 6m | |
| Wheelbase(mm) | 3360 | |
| Max. Speed (km/h) | 75 | |
Working parameter:
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
New craft:
Optional configuration:
Composition structure:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
