8×4 Sinotruk Howo large industrial fire truck Description:
- 8×4 Sinotruk Howo large industrial fire trucks are also called fire fighting tankers, fire appliances, fire fighting engines, fire-extinguishing water trucks, service trucks, fire rescue trucks, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- HOWO heavy-duty Chassis, Durable & Performance.
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
| SPECIFACTION | |||
| Item | Specifications | Item | Specifications |
| Truck | |||
| Name | 8×4 Sinotruk Howo large industrial fire truck central africa | ||
| Overall dimensions | 11900X2500X3635mm | Rated the quality | 23550kg |
| Tank dimensions | 7060×2380×1450mm | Curb Weight | 17300kg |
| Wheelbase | 1800+4600+1350mm | Approach angle | 14° |
| Front Truck | 2022mm | Departure Angle | 13° |
| Rear Track | 1830mm | Front Overhang | 1500mm |
| Max speed | 95km/h | Rear Overhang | 2545mm |
| Number of axles | 4 | Tyre | 385/65R22.5 |
| Traction system | 8*4 | Number of Tyres | 12+1 |
| Transmission | HOWO, manual | Allowable Cab Passengers | 2 |
| Chassis | |||
| Model | ZZ5437V4667E1 | Leaf Spring | ’11/12 |
| Engine (Motor) | |||
| Brand | HOWO | Type | Diesel |
| Model | D10.38-50 | Displacement | 9726ml |
| Horse power | 375 | Emission standard | Euro 5 |
| Equipment | |||
| Tanker(ton) | Water: 18m3 | Tank Material | stainless steel |
| Flow | 80L/S | Low Pressure Pump | CB10/80 |
| Pressure | 1.0MPa | Fire distance (water) | Water≥65m |
| Max lifting moment | 6000KN,M | Recommended power | 147kw |
ISUZU Fire fighting vehicle Bodywork details:

Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |

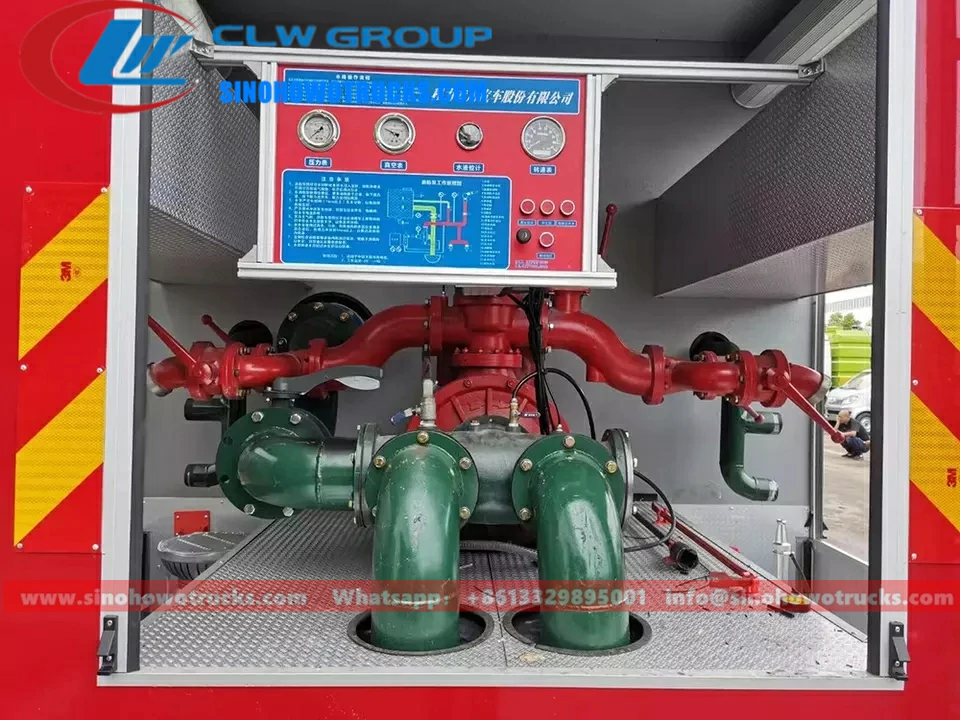

fire fighting engine Parts Picture:


Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.

Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
