Sinotruk Howo 15 tons mobile water tanker Application:
- Sinotruk Howo 15 tons mobile water tanker (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, and side spray to sprinkle and clean the roads, and streets for environmental sanitation and protection, called water sprinklers, or water spray trucks.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticides in agriculture pest control fields.
Advantage:
- 6X4 HOWO chassis, perfect performance
- SINO engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Sinotruk Howo 15 tons mobile water tanker Peru | ||
| Manufacturer | Hubei CHENG LI | |
| Chassis Model | SINOTRUCK ZZ1167 | |
| Chassis | Model | HOWO 76 new face type, one and half row cabin |
| Driving type | 4×2, RHD/LHD | |
| Wheelbase | 4600mm | |
| Dimension | 8500×2500×3350 mm | |
| Engine | Model | SINOTRUK WD615.87 |
| Power | 290HP | |
| Displacement | 9.726L | |
| Emission Standard | EURO II | |
| Type | Diesel,6-cylinder vertical in-line, water-cooled | |
| Axle | Front | HF7 |
| Rear | ST16 | |
| Tire | 12.00R20, 6+1 tyres including one spare tyre | |
| Transmission | HW13710 transmission+ HW50 direct-connected power take-off; | |
| Water Tank | Volume | 12000L/ 12 m3 |
| Shape | Ellipse | |
| Thickness | 5mm | |
| Material | Carbon Steel Q235 | |
| Anti-corrosion | Anti-corrosion layer inside the tank | |
| control system | Electrically hydraulic control | |
| Spraying system | Front Sprinklers | a sprinkler on the left and right side respectively |
| Rear Sprinklers | a sprinkler on the left and right side respectively | |
| Working Platform | an operator standing there to operate the water gun | |
| high-pressure water gun | shotting range over 28m | |
| Water suction tube | 2 tubes of 3m long, or 1 tube of 6m long | |
| Water level gauge | 1 set | |
| Special Function | Vertical suction height | >7m |
| Sprinkler width | >14m | |
| Flux | 90m3/h | |
| Water intake time | <5min | |
| Water Pump | WLOONG brand, for water suction and drainage as dual function | |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||
HOWO water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.

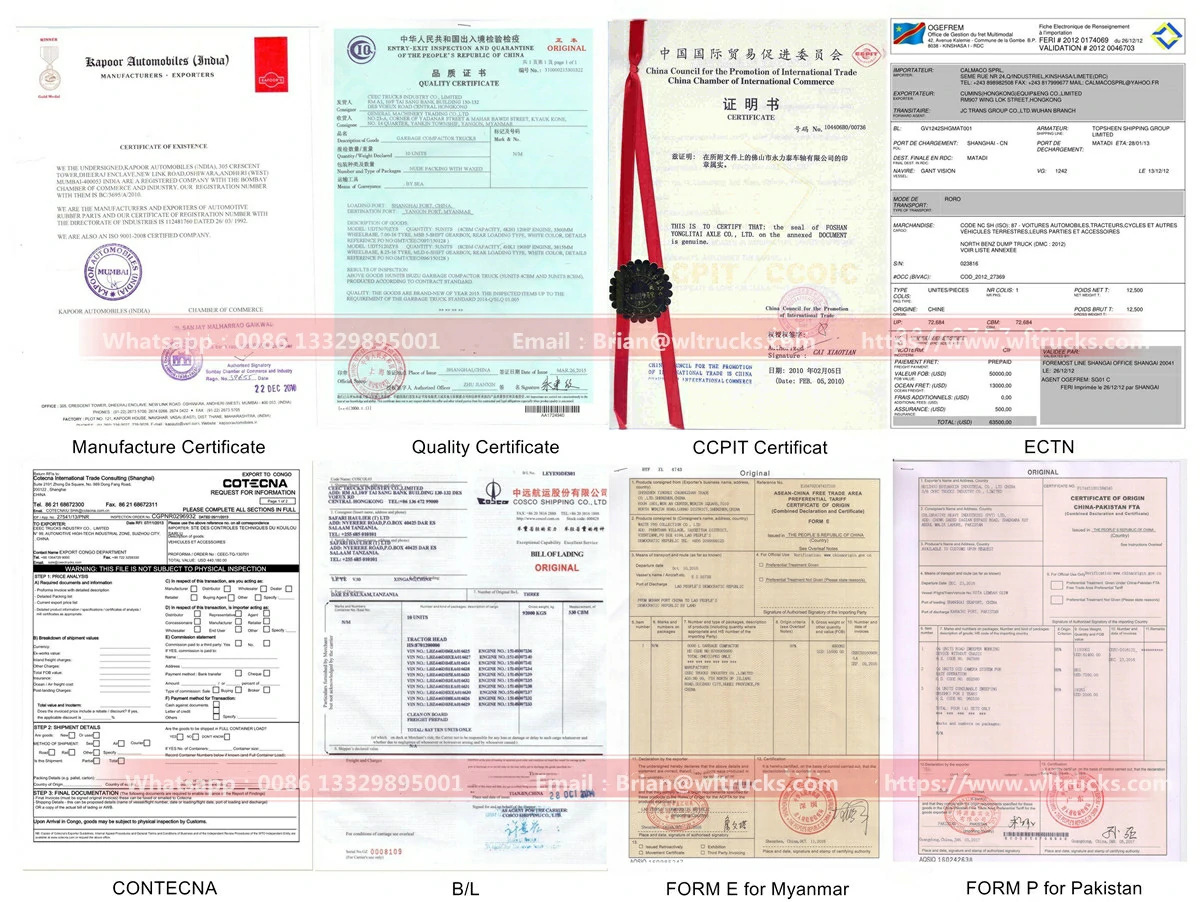

water supply truck Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
